HEATING LIKE THE SUN - THE NATURAL WAY

EnergoInfra

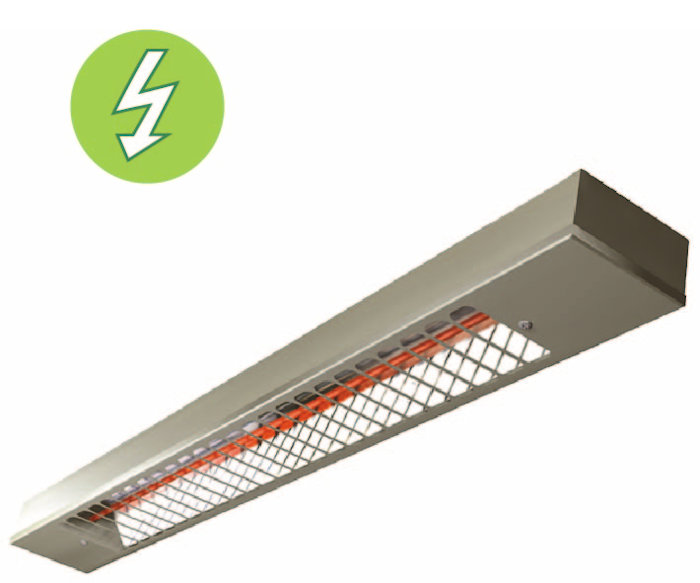

Electric Infrared Heater

An aesthetically pleasing infrared heater suitable for terraces, conservatories or patios. Also an excellent choice for spot/zone heating applications. 500W, 1000W or 1500W.

How Does It Work?
The Energolnfra, EIR, emits high temperature radiant heating. Despite the high temperature it still provides a soft radiant heating with a wide heat spread.

Unlike an infrared heater with halogen lamp, the EIR emits no red visible light, only a faint and discreet glow from the heating element.

The expected lifespan of the EIR is 2-3 times longer compared to a halogen infra, thanks to the robust element in stainless steel.

The EIR is often used as a heat supplement for conservatories, terraces, balconies, outdoor cafes etc. It is also suitable for spot and zone heating of workplaces. EIR can also be used in wet rooms.

The ceiling mount frees valuable floor and wall spaces, while the heater is protected from contact and damages.



Design and Composition
Energolnfra is constructed of corrosion protected materials which assures a long life span. The casing, heating element, protective guard and the brackets are made of uncoated stainless steel. The reflector is made of high-gloss polished aluminium.



Technical Information
Output: 500W, 1000W or 1500W, 230V.
Max. element temperature: 700°C.
Appliance and protection class: Class I - IP44.
Mounting height: From approximately 1.8 m.
Connection: Fixed installation to a 4 mm² terminal block in the connection box at one end of the heater. Several heaters can be linked together.
Suspension: EIR can be mounted onto the ceiling or to the wall with the supplied fixing brackets. The brackets are adjustable and can be angled in different fixed positions. The heater can also be suspended on wires, chains, etc. (optional extra).



Type

L (mm)

W (mm)

H (mm)

Kg

EIR500

700

75

40

1,5

EIR1000

1170

75

40

2,0

EIR1500

1680

75

40

3,0



Further information regarding mounting and installation can be obtained from our technical brochure.

Temperature control is simply carried out with use of our room thermostats. Another clever heat management is our wireless dimmer solutions, ask us for a separate brochure.
