EnergoInfra Industry
COST EFFECTIVE, HIGH WARMTH COMFORT
EnergoInfra Industry

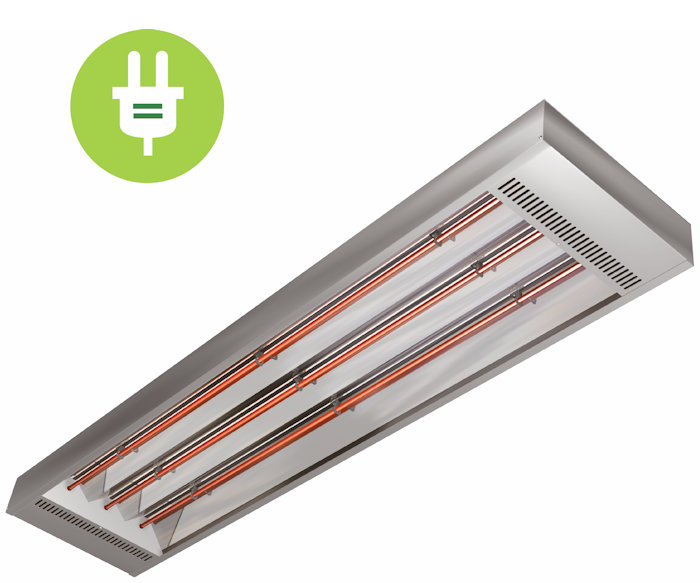

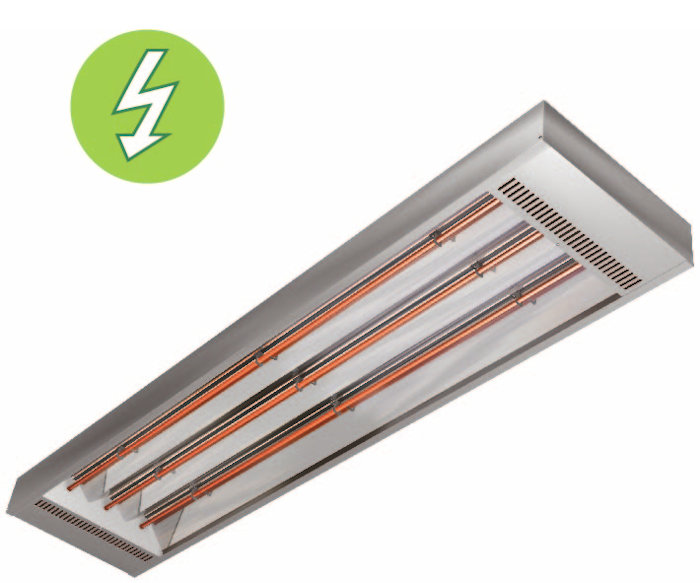

Electric Infrared Heater
An infrared heater that is suitable for total heating or additional heating in premises with high ceilings, from 3 m. It can also be used outdoors, for example on sports stands and loading docks. Available in three types: 3000W, 4500W and 6000W.
How Does It Work?
The Energolnfra Industry, EIR, emits high temperature radiant heating which warms floors, walls and other surfaces. As a result you can lower the air temperature in the room and still achieve the same level of comfort with energy savings up to 40% compared to a convective or hot air system.
The high temperature makes the Energolnfra Industry especially suited for overall heating of applications with high ceilings, from approx. 4-40 m.
When used for spot heating in draughty working environments, the heater can be mounted from 2.6 m above the floor.

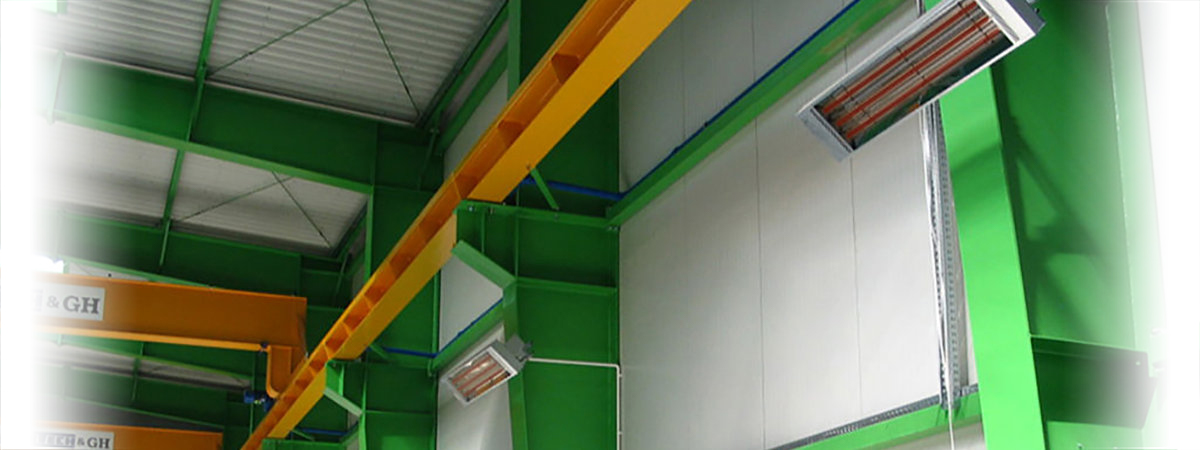

Suitable for all industrial applications and also for outdoor use, i.e. loading bays, spectator stands, restaurants, etc.
The ceiling mount frees valuable floor and wall spaces, while the heater is protected from contact and damages.
Design and Composition
Energolnfra Industry is constructed of corrosion protected materials which assures a long life span. The casing and the brackets are made of galvanised sheet steel, heating elements of stainless steel. The reflector is made of high-gloss polished aluminium.
Technical Information
Output: 3000W, 4500W or 6000W, 400V3N~ or 400V3~. The heater may also be connected to 230V1~ by some internal rewiring.
Appliance and protection class: Class I - IP44.
Mounting height: Approximately from 4 m to 40 m.
Connection: Fixed installation to a 16 mm² terminal block in the connection box. The heater has three separate heating elements which can be connected and controlled individually. Several heaters can be linked together.
Suspension: EIR can be mounted onto the ceiling or to the wall with the supplied fixing brackets. The brackets are adjustable and can be angled in different fixed positions. The heater can also be suspended on wires, chains, etc. (optional extra)
|
Type |
L (mm) |
W (mm) |
H (mm) |
Kg |
|
EIR3000 |
1030 |
300 |
80 |
5.5 |
|
EIR4500 |
1360 |
300 |
80 |
7.0 |
|
EIR6000 |
1680 |
300 |
80 |
8.5 |
Further information regarding mounting and installation can be obtained from our technical brochure.
Temperature control is simply carried out with use of our room thermostats and/or a 3-step switch. Another clever heat management is our wireless dimmer solutions.
Wiring Diagram - Connection 230V 1~
Accessories
Wire Fix
Protection Grille
